The machine is capable to make tips, ferrules, tenons adjustment and replacement.

Comes with 3-jaw chuck X2

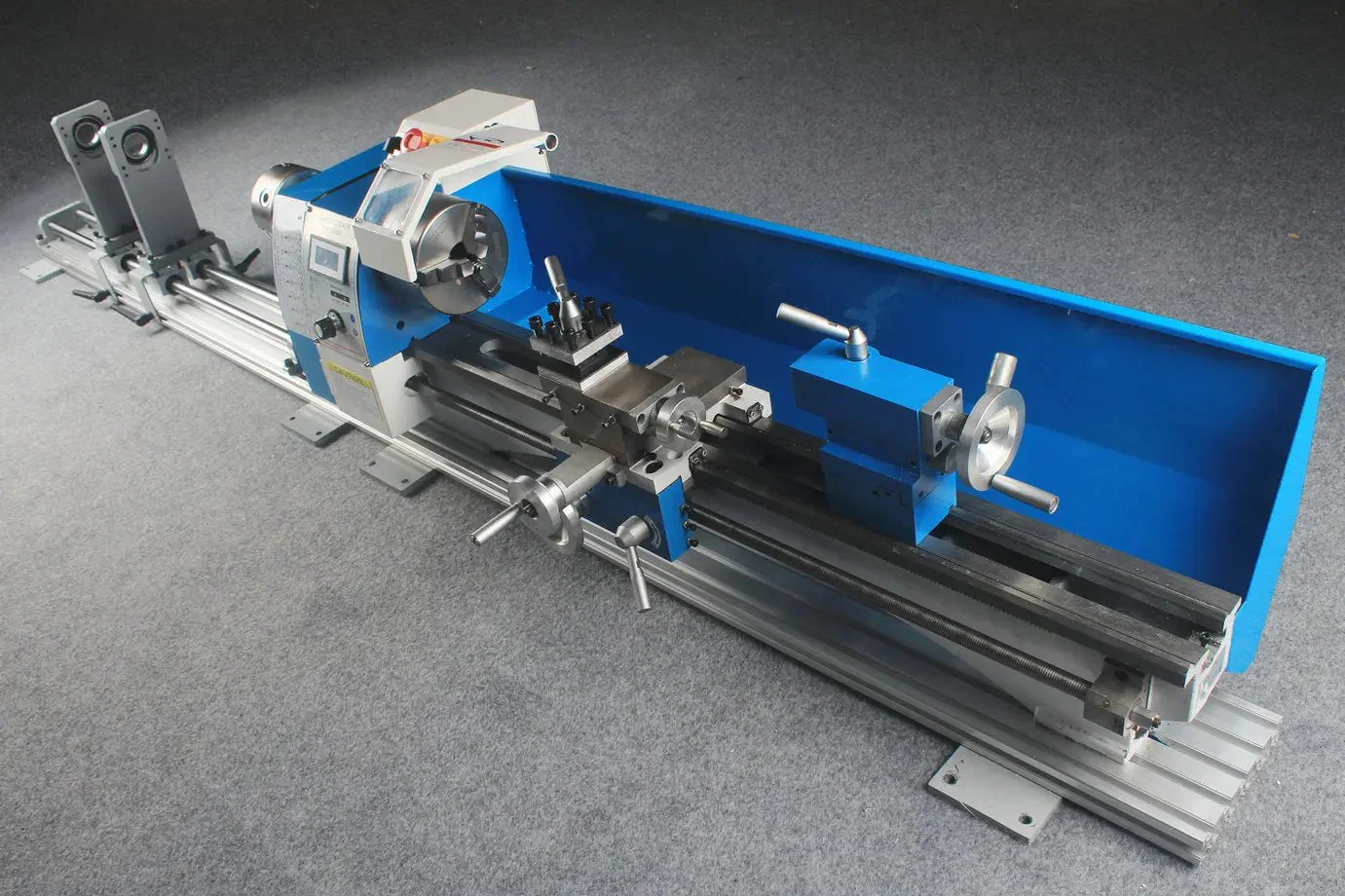

Casting + orbital bed + 210 lathe double-head chuck extended version
Main functions: Repair the leather head, replace the front horn to replace the bronze drum, customize the front horn to customize the bronze drum, slot the back handle, winding,
foreskin handle, change male and female teeth, make female teeth, increase or decrease counterweight, repair loose counterweight, Opening, polishing, sanding, maintenance, etc.

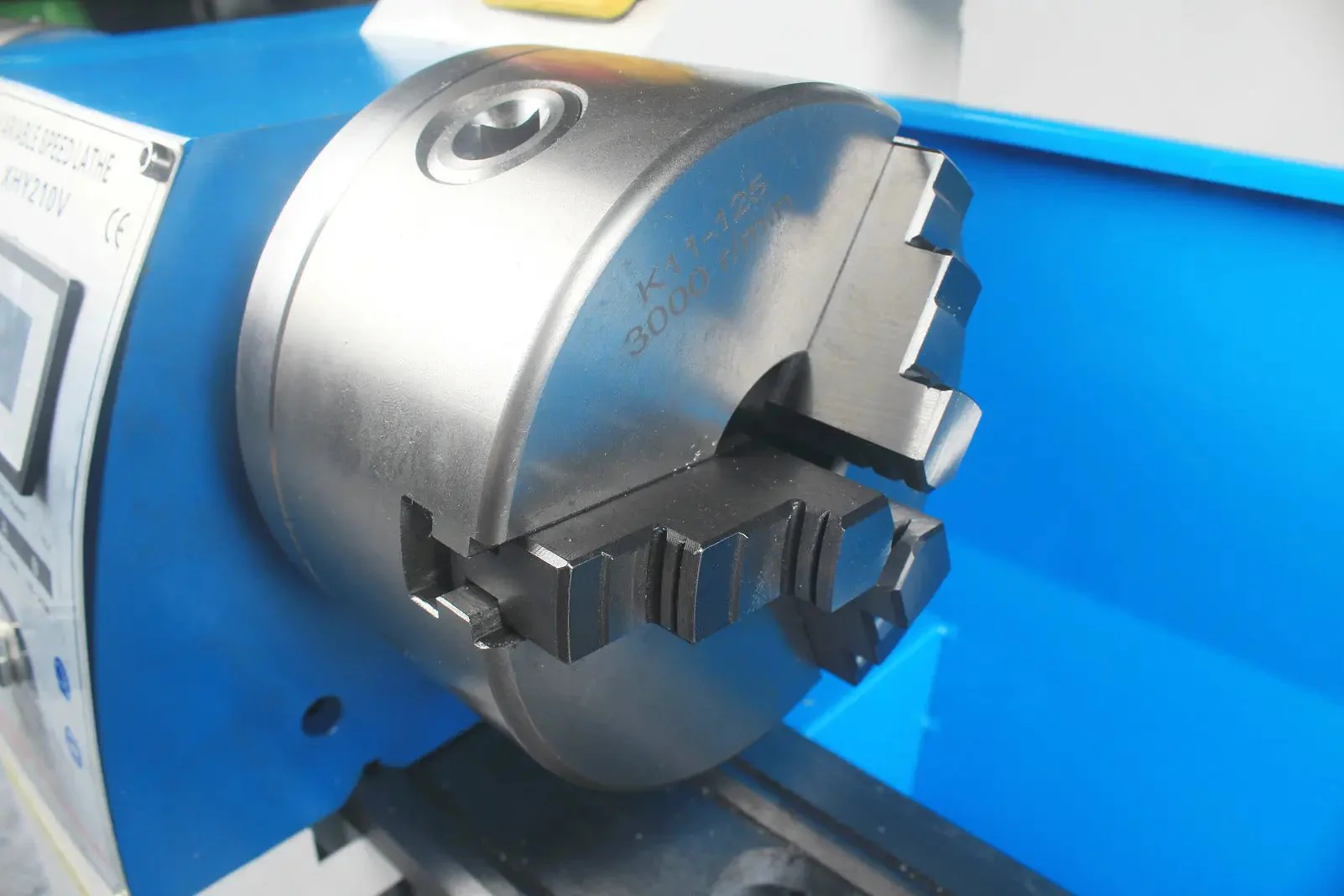

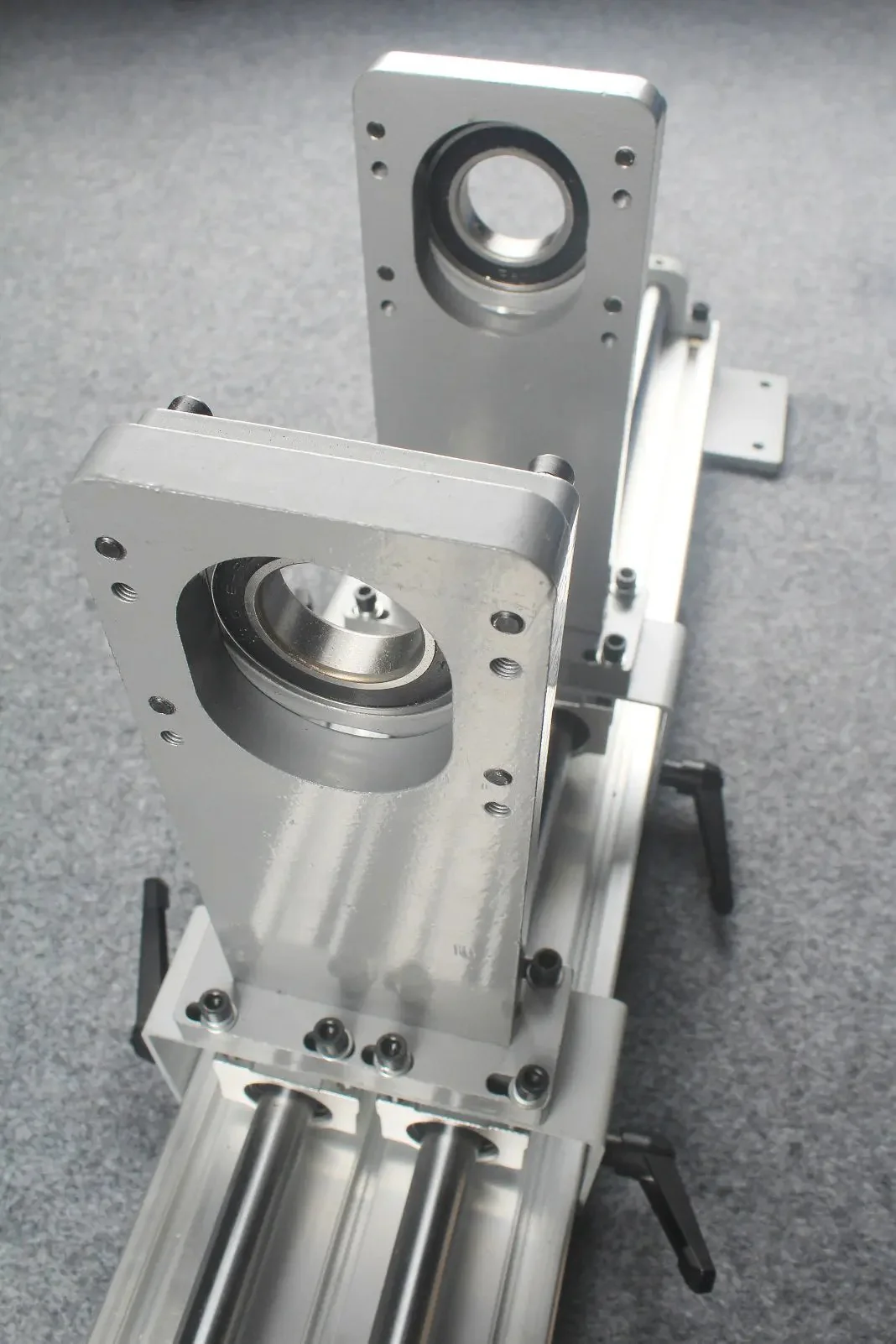

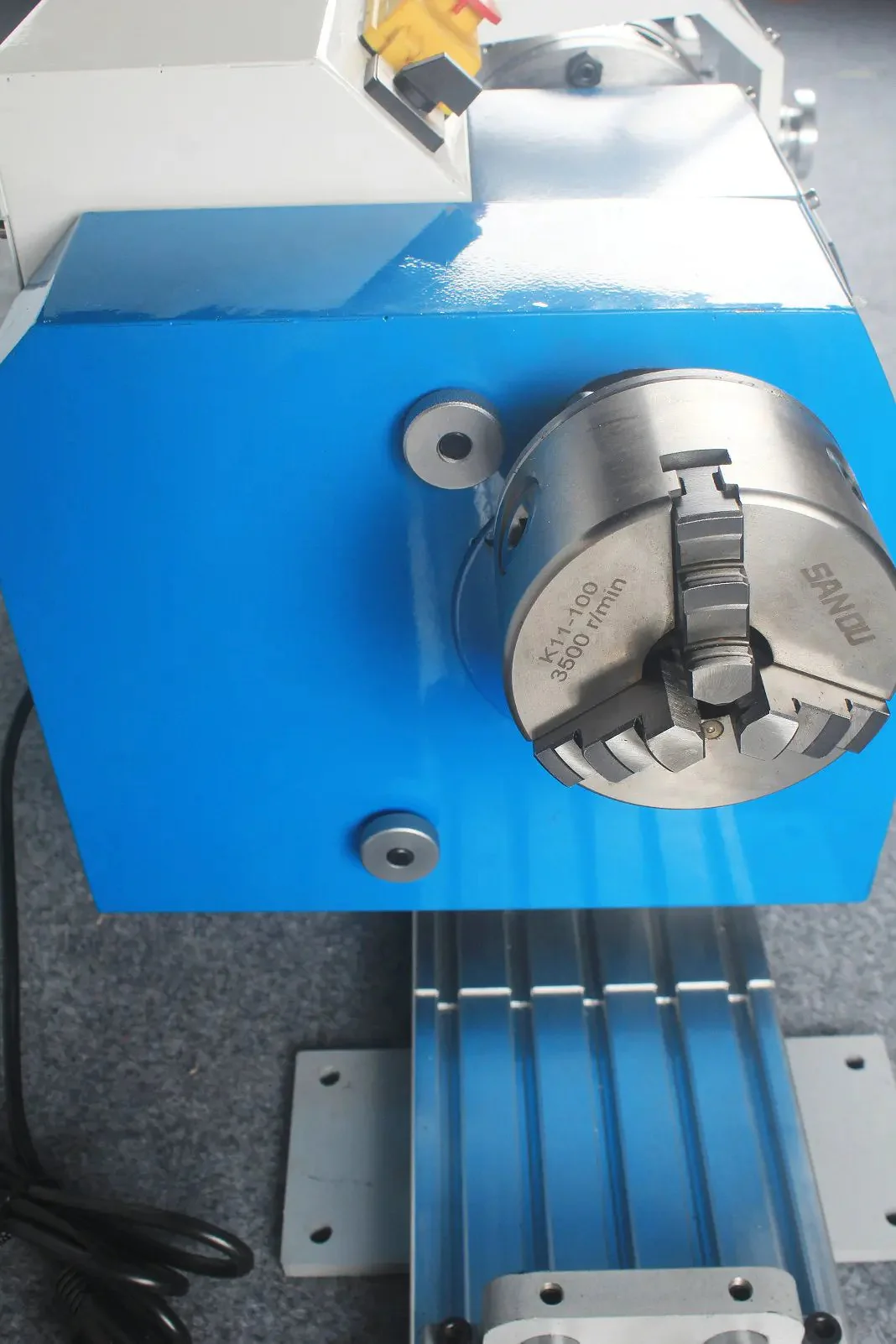

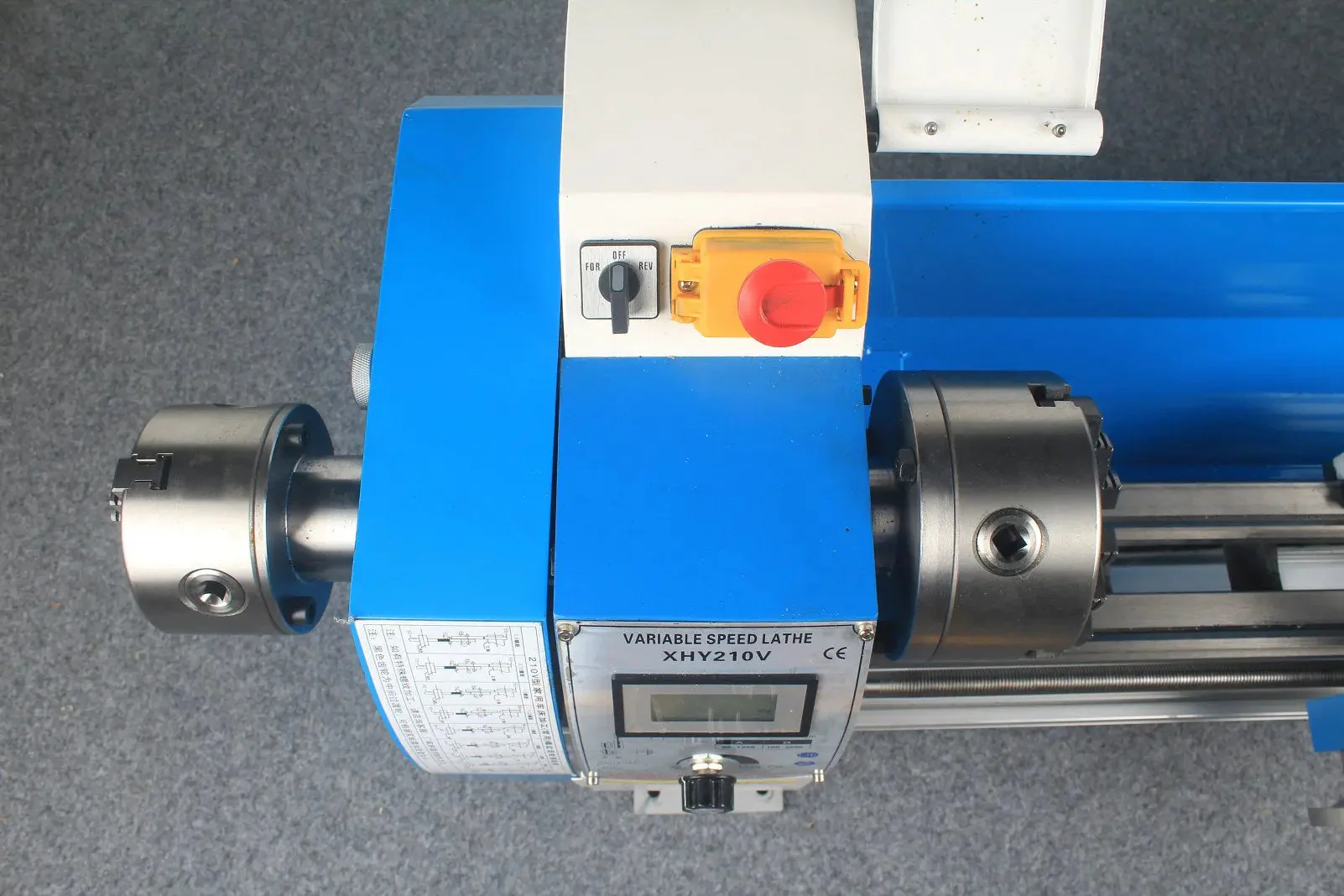

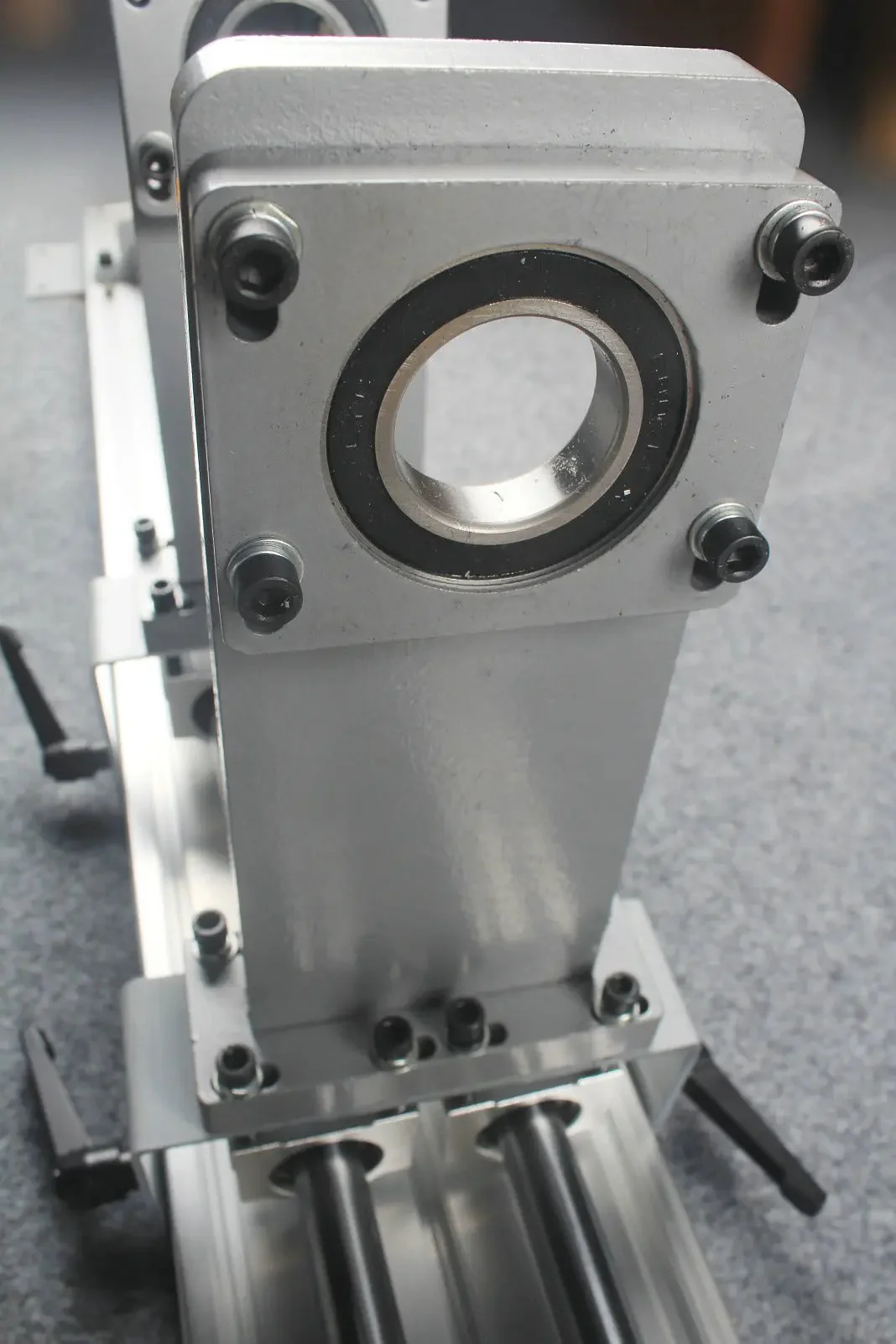

The 210-750 stroke lathe is equipped with an integrated aluminum alloy bearing bracket. 900-watt brushless motor, 100-inch metal chuck on the outside and 125-3-jaw metal

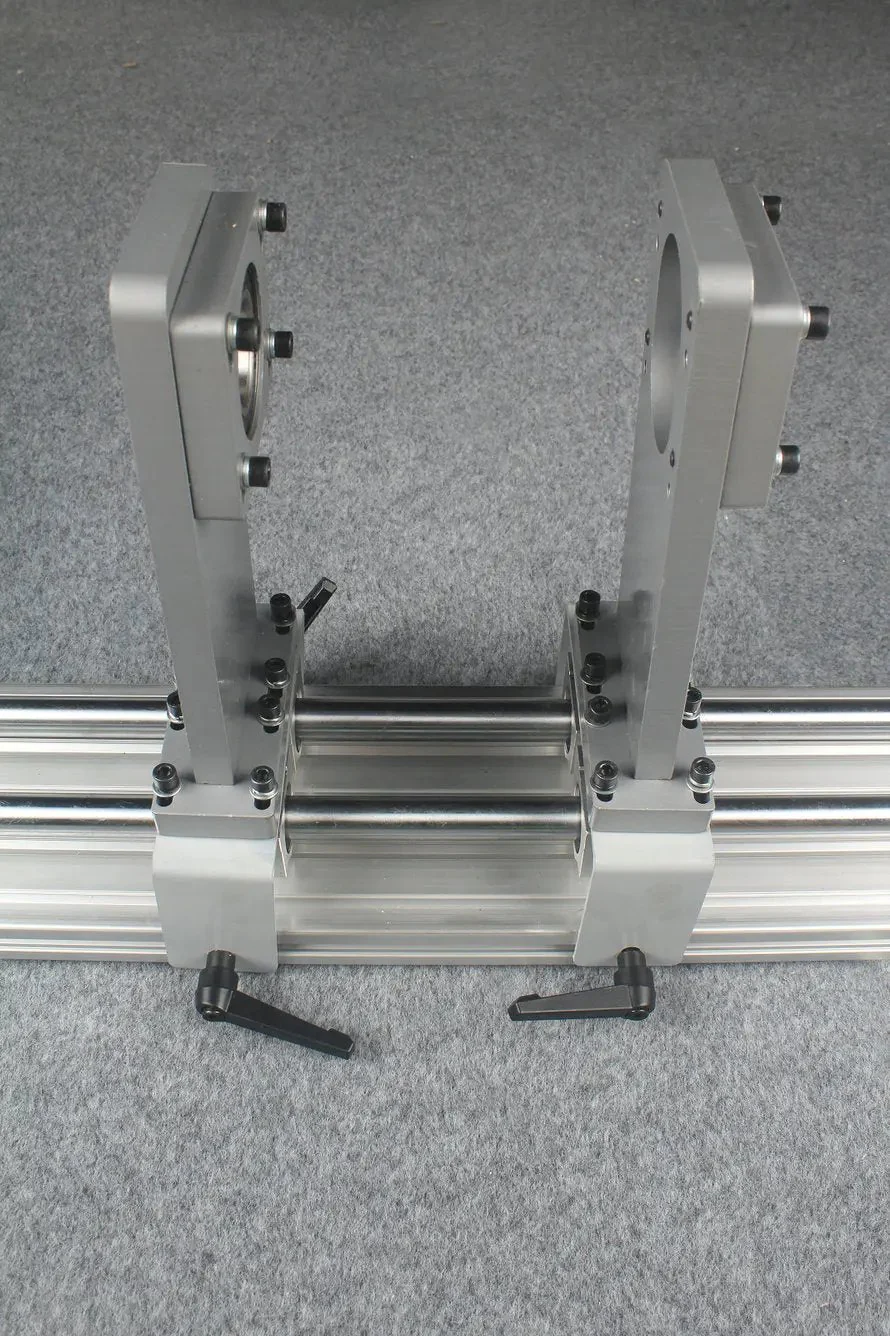

chuck on the inside. The inner chuck can be equipped with an optional 6-jaw chuck. The inner processing length of the bed guide rail is 750 mm, and a chuck center frame is added. This can
replace the position of the tailstock. The club is reversed and passes in from the inside of the bed. The rear handle can be repaired. Except that it cannot be straightened, the
function of repairing the rod is Everything can be done.



Metric thread range（mm）	0.5-3
British series of threads	8
Inch thread range	8-44T.P.L
Automatic feed range（mm）	0.1-0.2

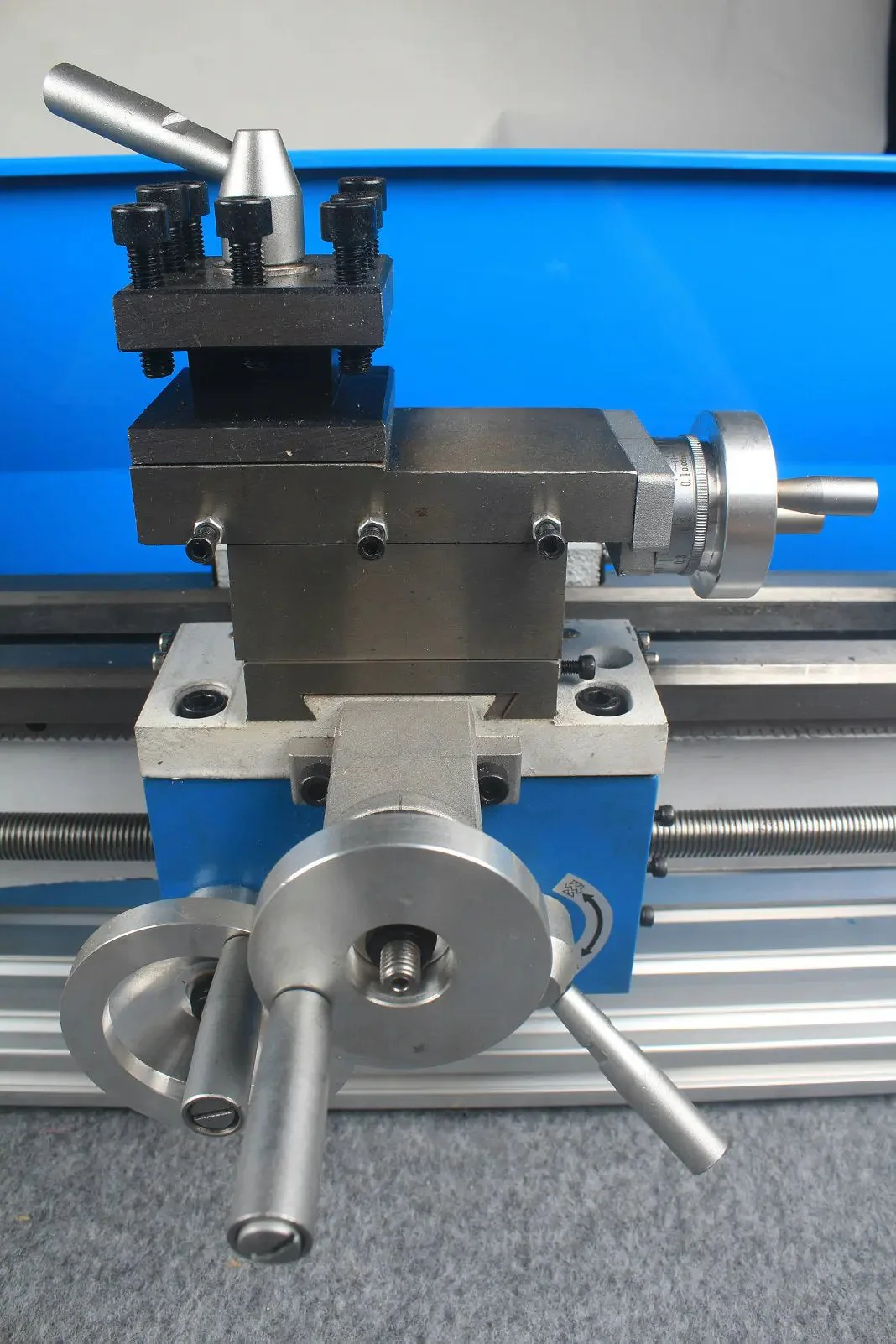

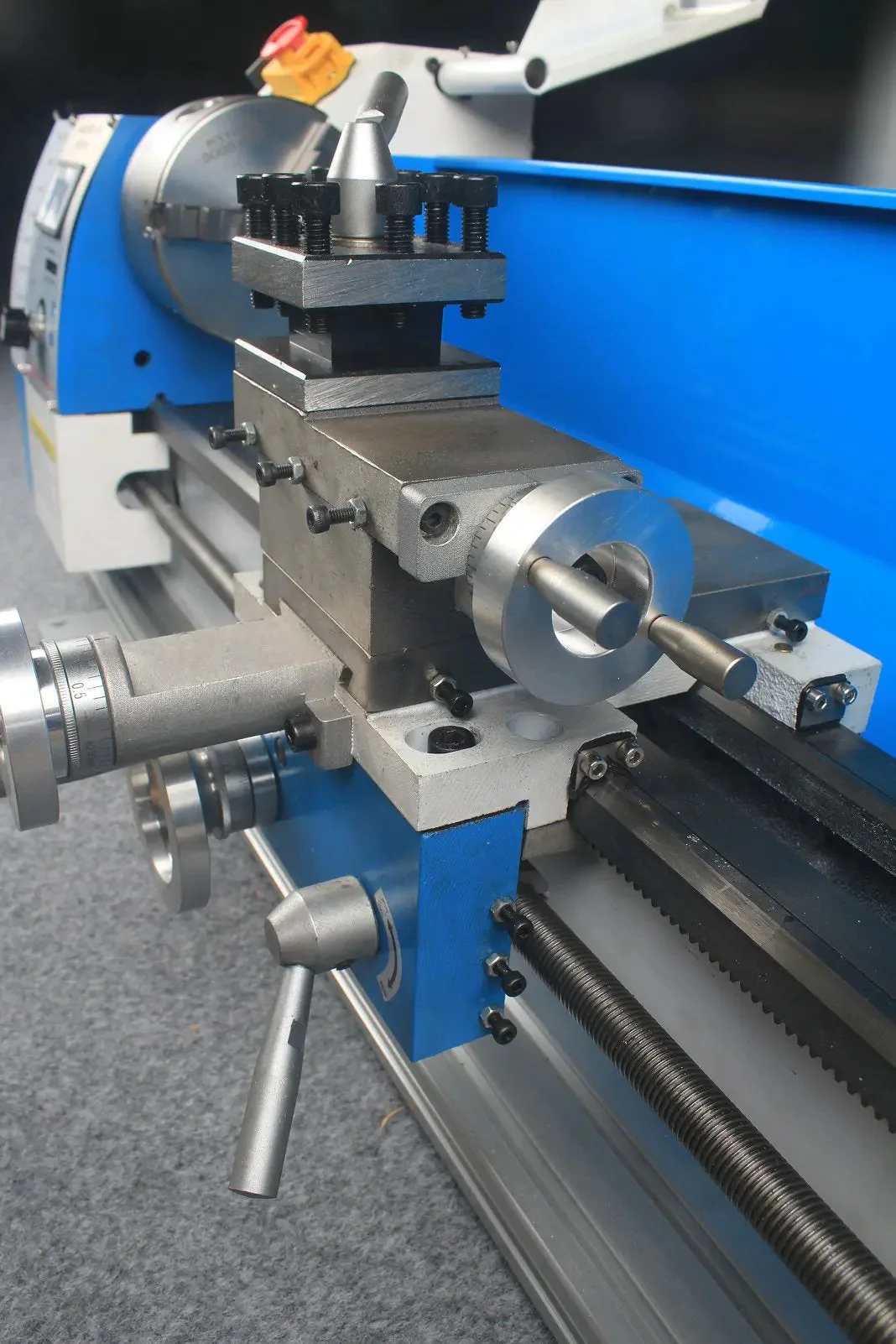

Tool rest station	4
Spindle accuracy	0.02
Distance between two centers（mm）	700
Bed rotation diameter（mm）	210
Tool holder rotation diameter（mm）	140
Spindle through hole diameter（mm）	38
Bed width（mm）	100
Chuck diameter（mm）	125
Motor power	900

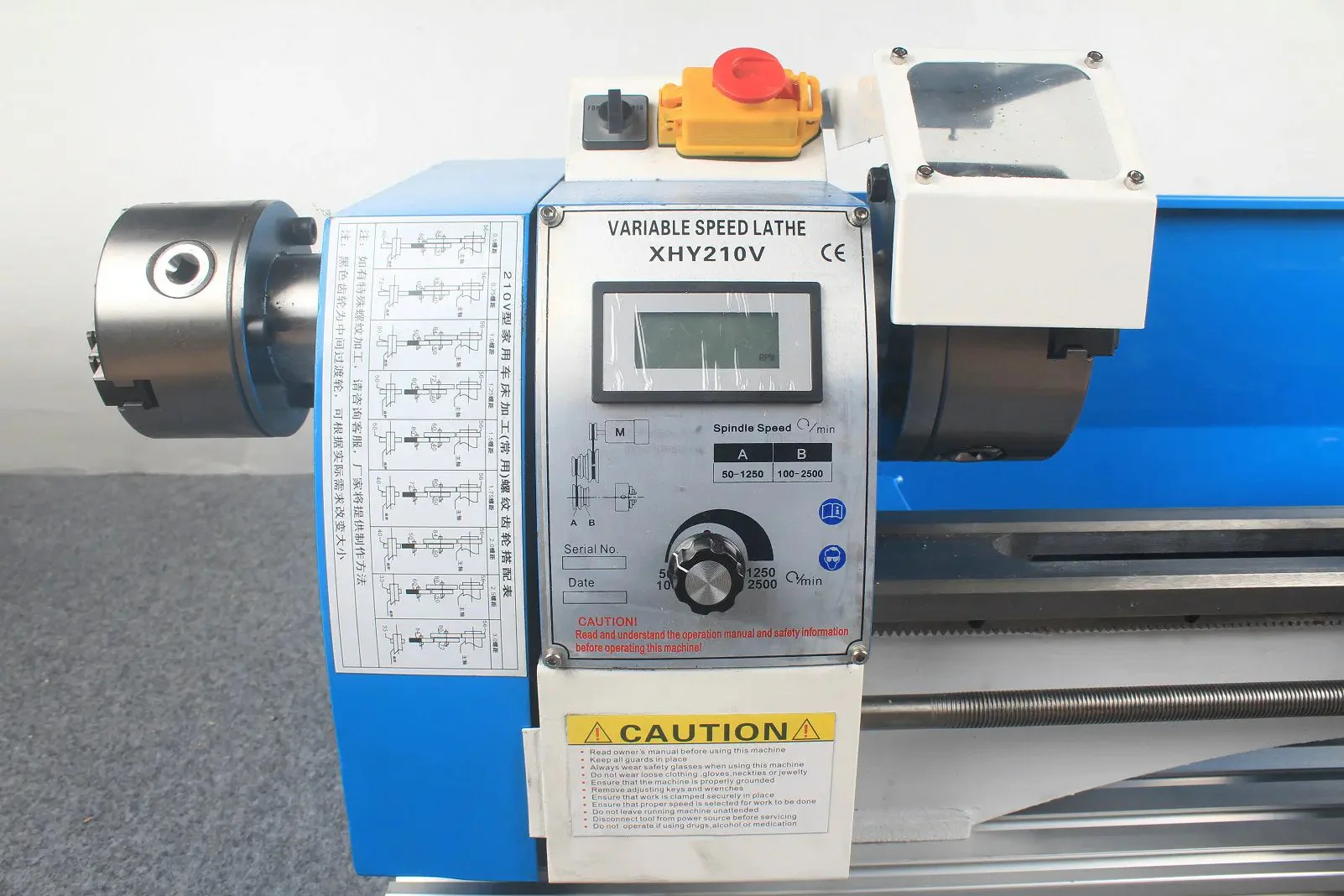

Speed range	50-2500RPM
Shift series	continuously variable

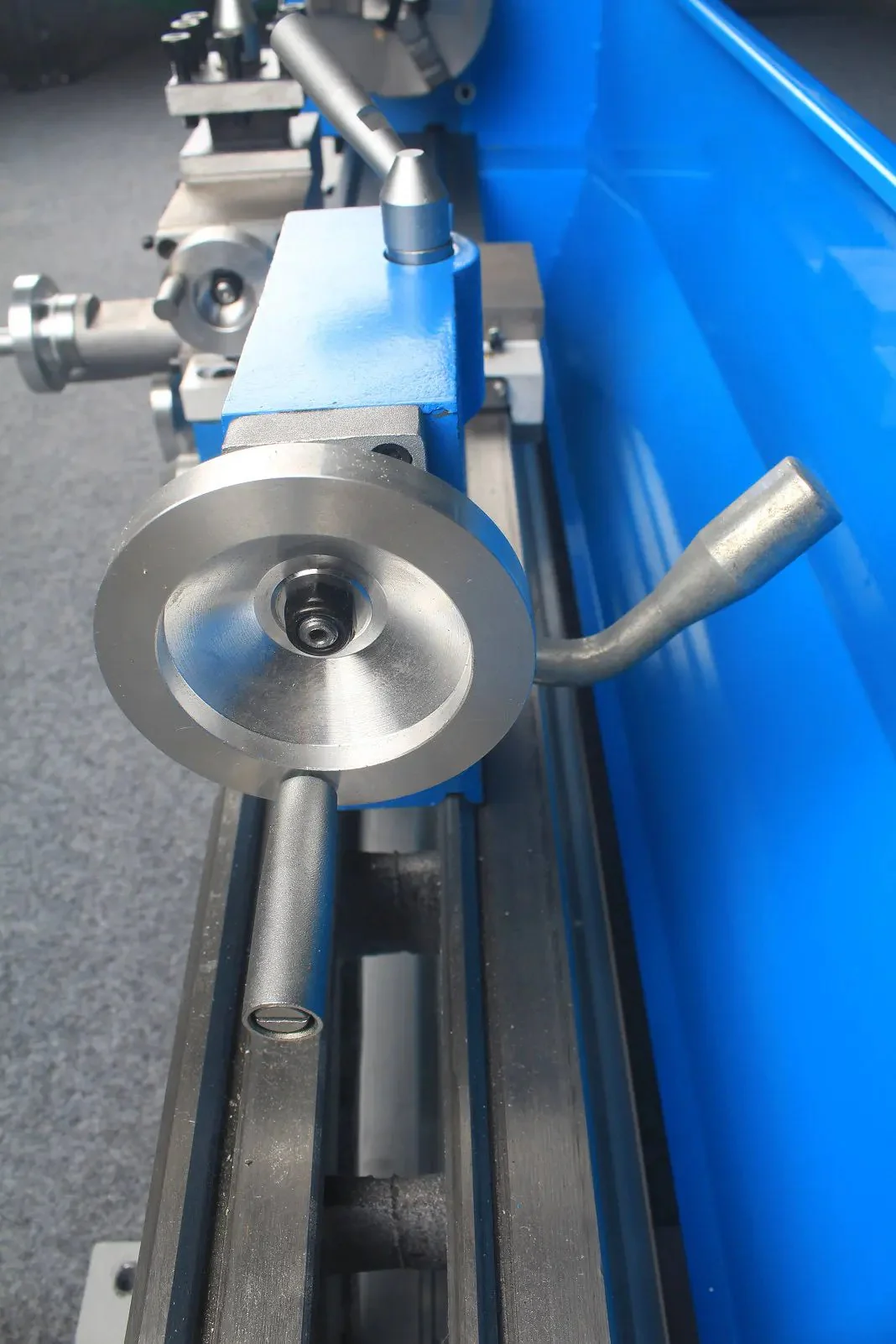

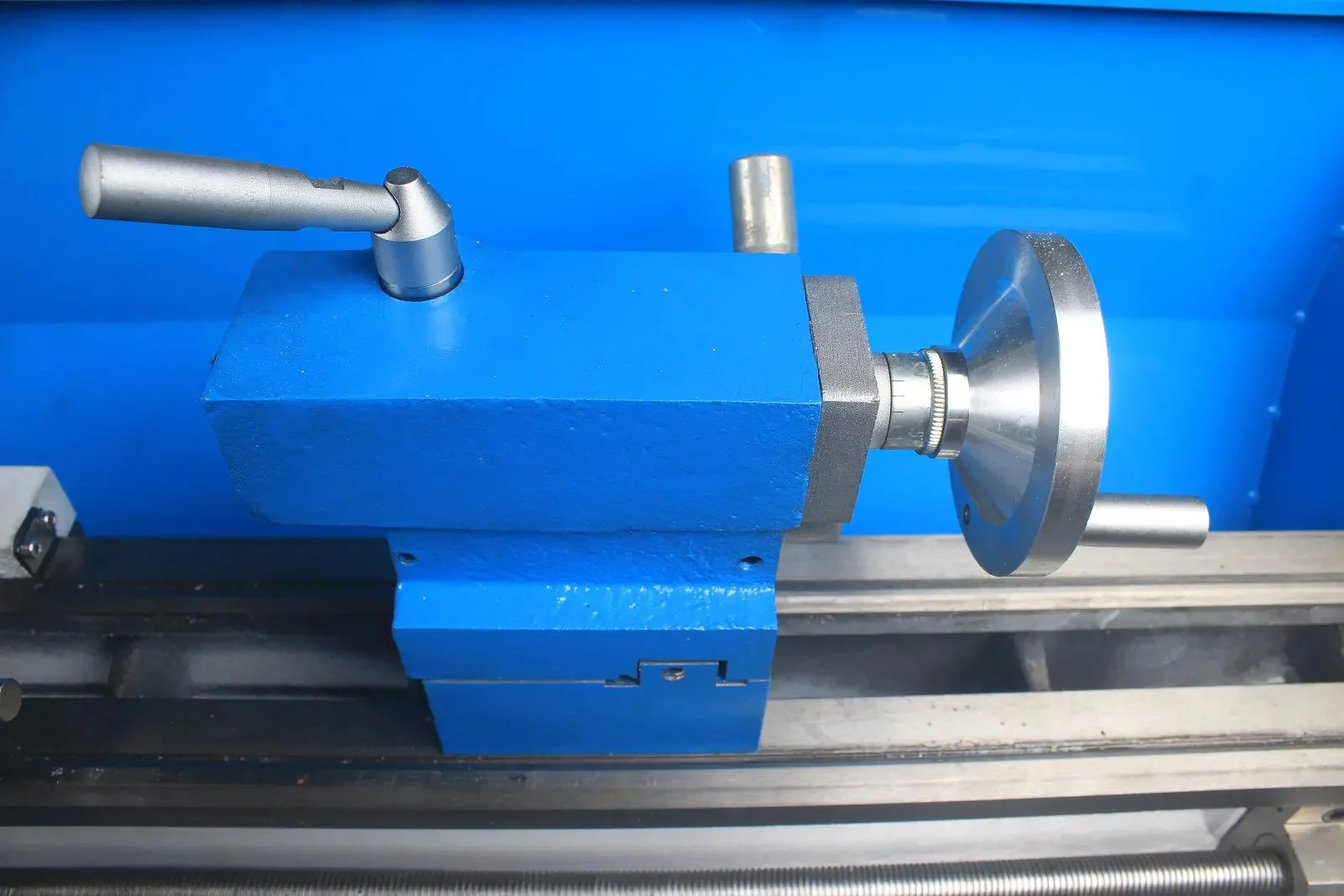

Tailstock sleeve stroke（mm）	60
Spindle taper	MT3
Motor voltage	220V
Maximum travel of middle drag plate（mm）	75
Tail frame taper	MT2
Maximum travel of tailstock sleeve（mm）	60
Number of metric threads	10

weight: 126 KG

Because it is a large item, please contact us [email protected] for a detailed logistics plan before placing an order.

The machines have been inspected and qualified before leaving the factory.
The cue repair machine requires learning and practice. People with poor hands-on ability should not buy it easily. Returns are not supported.
